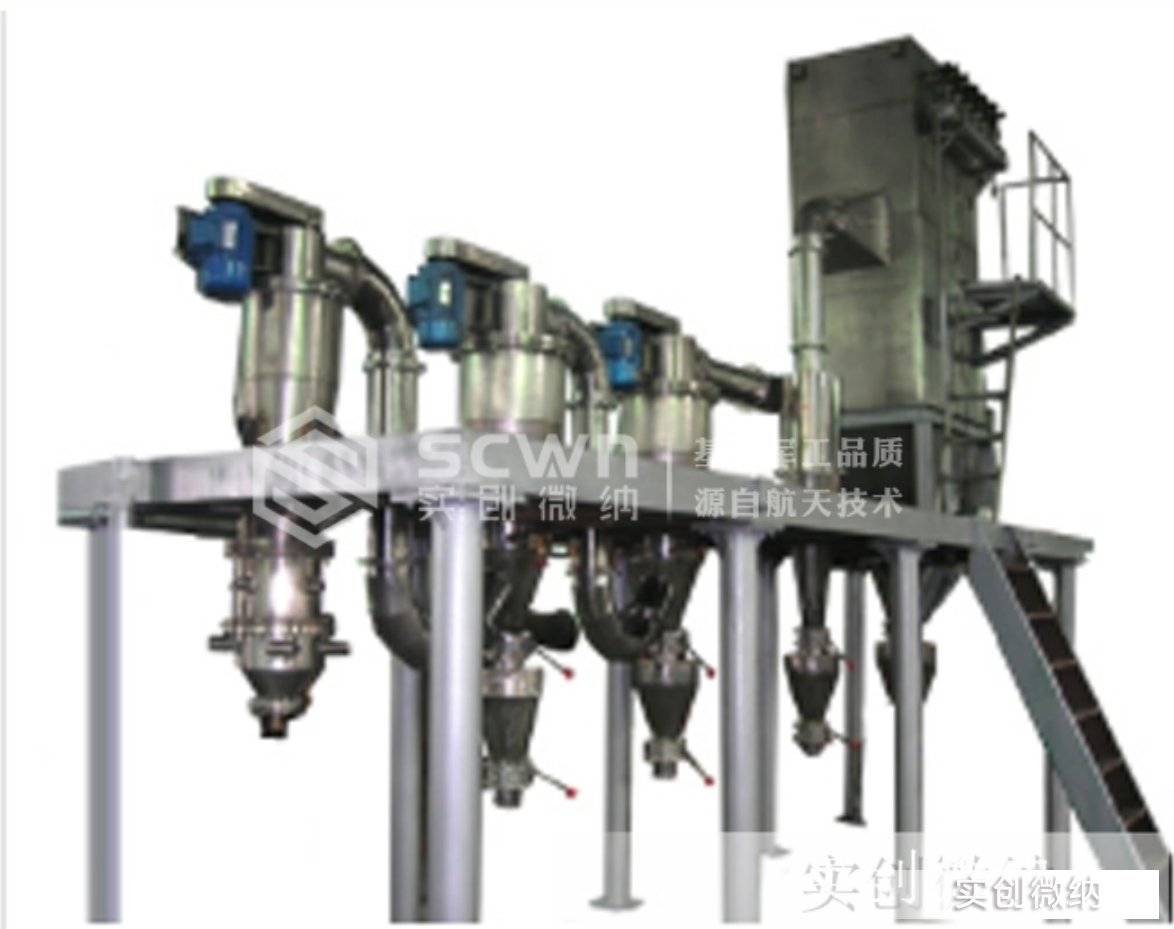

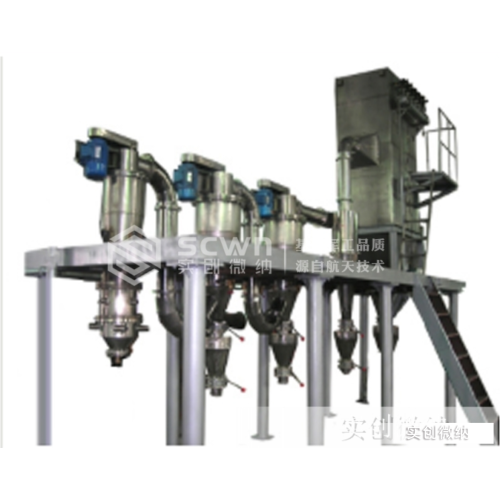

Specialized grading equipment for the abrasive industry primarily consists of the SCLM series Raymond mill pulverizer and the SCWN-Q series jet mill classifier. It is adjustable according to JIS standards ranging from 1000# to 3000#. For cutting tough materials, the photovoltaic industry typically employs the SCLM+SCWN-F pulverizing and classifying system. For general abrasives, the SCLM+SCWN-F jet mill classifier is used. For functional ceramics, the SCWN-Q jet mill is adopted, featuring high classification precision, a finished product rate exceeding 75%, uniform particle size distribution, high precision, large production capacity, and minimal wear.

Equipment Selections:

Jet Mill - SCWN-Q Series
Raymond Ultra-fine Mill - SCLM Series
Air Classifier - SCWN-F Series

Equipment Material: Carbon Steel

Applicable Models: SCLM-400-2; SCWN-100, 200, 300; SCWN-F-400-2

Application Areas: Cutting tough materials, abrasives, functional ceramics

Typical Materials: Black silicon, green silicon, diamond, etc.

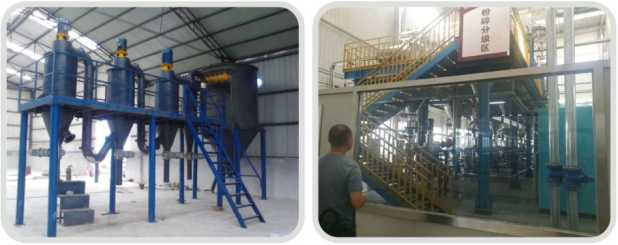

The customized silicon carbide grading machine, specifically designed for abrasive grinding, is based on the original SCWN jet mill and tailored to the unique physical properties and processing requirements of green and black silicon. For black silicon, the jet mill is utilized to avoid over-grinding and ensure high classification precision. For green silicon, our SCLM-400-2 and SCWN-F400-2 specialized pulverizing and classifying equipment are recommended.

Equipment Features:

Dry production without water or washing, yielding narrower particle size distribution and environmentally friendly abrasive powders. Capable of producing any grade according to international standards (e.g., GB W63 ~ W3.5, JIS 240# ~ 3000#, and FEPA F230/53 ~ F1200/3) with a single-grade yield rate exceeding 75%.
Equipped with an air classifier for high classification precision, more accurate cutting particle size, lower required rotational speed, and extended service life.
Independent cast bearing housings ensure permanent deformation resistance and long service life.
Optimized transmission design reduces bearing stress for longer lifespan.
Unique piping design enhances powder flow, minimizes wear, and facilitates easy replacement and maintenance of wear-prone parts.
Proprietary feeding system ensures material dispersion, continuous and even feeding, and stable product particle size control.
Innovative internal recirculating secondary air and grading cone gap design significantly reduce air consumption and energy consumption during classification, ensuring thorough fine powder extraction.
Separate flow paths mitigate wear at the Classifier Wheel base and facilitate better control of larger particles.
(Duplicate of Point 8) Separate flow paths mitigate wear at the classifier wheel base and facilitate better control of larger particles.
Fully enclosed negative pressure operation of the jet mill ensures dust-free operation, stability, and consistent production upon fixing the initial parameters.
