Detailed Introduction:
Working Principle:
(1) Feeding Control System: The feeding control system consists of a star feeder or vibrating feeder combined with a variable frequency controller and a feeding bin. It achieves continuous and uniform control of the feed rate by adjusting the output frequency/current of the feeder controller.

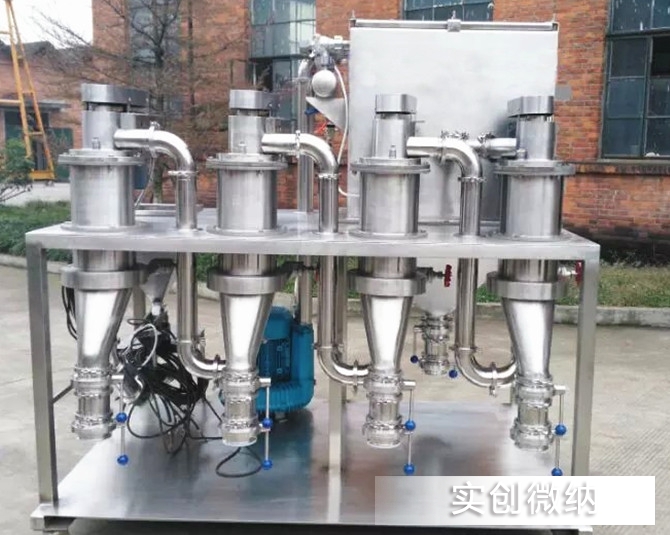

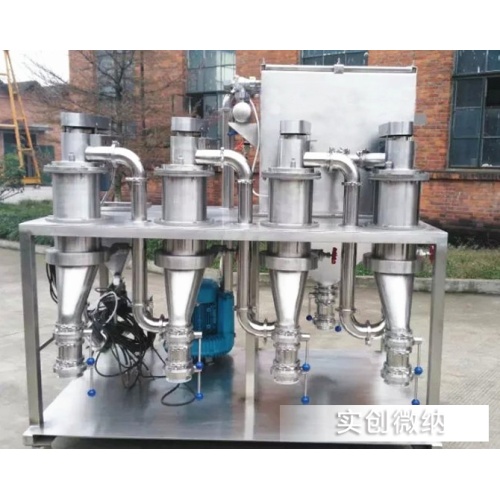

(2) Classifier Main Unit: The classifier main unit comprises a motor, Classifier Wheel, and a cylinder. It achieves effective classification of materials by adjusting the rotational speed of the classifier wheel and coordinating with a reasonable secondary air inlet.
(3) The classifier impeller is adjusted through a frequency converter, and protective measures such as loss of pressure protection, overcurrent protection, material level control, operation status monitoring, and alarm systems are designed.

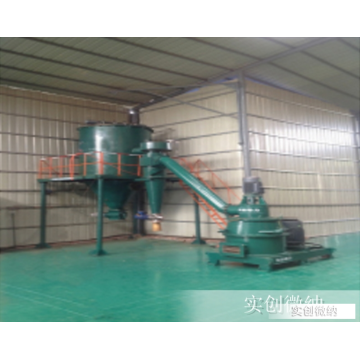

(4) Cyclone Collector: This equipment serves as the primary collection system in the classification process. When the dust-laden airflow enters the cyclone collector, the powder slides down the cylinder wall due to centrifugal force and is separated and purified at the tail of the inner cone. The purified gas and a small amount of fine powder are discharged through the cyclone center tube.
(5) Pulse Bag Filter: This equipment consists of a bag collection unit, pulse dust cleaning device, and pneumatic control device. The collection system, composed of our company's imported high-grade membrane filter bags and Venturi tubes, can achieve online and offline dust cleaning modes.
Performance Advantages and Features:
◆ Centrifugal classification is performed based on particle size, shape, and density. Without water addition or washing, it achieves a narrower particle size distribution and produces non-polluting micro-powders.
◆ Features include efficient classification, wear reduction technology, reliable sealing without leakage, large particle control technology, fine powder extraction technology, complete and stable flow field design, constant gas-solid concentration ratio design, and technology to regulate the yield of a specific product grade.
◆ Low Wear: It can process high-purity and ultra-narrow ultra-fine powders, avoiding wear from horizontal classifiers. With the same material, the service life of wearing parts is more than 5 times longer than that of ordinary classifiers.
◆ High Classification Accuracy: A stable and complete classification flow field and special sealing measures reliably prevent the leakage of coarse particles. The internal circulation of the vertical turbine classifier ensures the qualified product particle size.
◆ The complete and stable flow field established by the high-efficiency and high-precision wheel classifier strictly limits the production of large particles, achieving an excellent particle size distribution and a narrow particle size range in a single production process.
◆ Operates under full negative pressure, preventing dust pollution. The equipment does not require a pit foundation, facilitating inspection, maintenance, and repairs.
Application Fields:

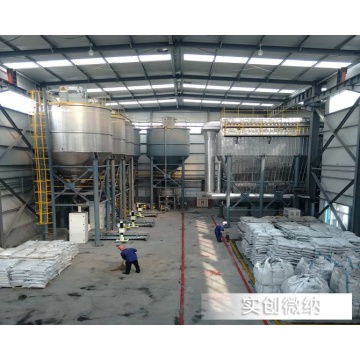

Dry classification of fine powders in industries such as non-metallic mineral powders, abrasive micro-powders, food, medicine, papermaking, chemicals, building materials, metallurgy, new materials, and electronic materials. Typical materials include iron ore powder, high-purity quartz powder, and silicon carbide micro-powder.
