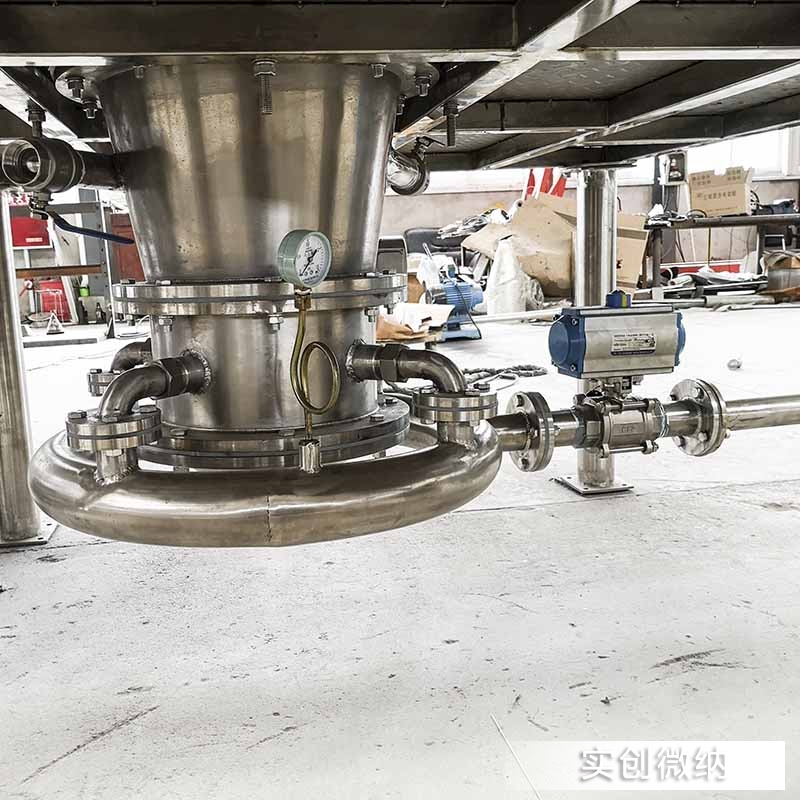

New ultra-energy-saving pneumatic crusher

Get Latest Price

Min. Order:

1 Set/Sets

Contact Now

Product Description

Product Attributes
Packaging & Delivery

< >

Overview

Product Attributes

Applicable Industry: Manufacturing Plant

Packaging & Delivery

Selling Units:: Set/Sets

Detailed Introduction:

I. Working Principle:

After the compressed air undergoes cooling, filtering, and drying, it is formed into a supersonic airflow through nozzles and injected into the grinding chamber, fluidizing the material. The accelerated material converges at the intersection of several nozzle jets, resulting in intense collisions, frictions, and shears to achieve ultrafine grinding of particles. The grinded material is then transported by the ascending airflow to the impeller classification area. Under the centrifugal force of the classifier and the suction force of the fan, the separation of coarse and fine powders is achieved. The coarse powder returns to the grinding chamber for further grinding based on its own gravity, while the qualified fine powder enters the cyclone collector with the airflow. The fine dust is collected by the bag filter, and the purified gas is exhausted by the induced fan.

II. Features:

Low energy consumption, saving up to 30% compared to traditional fluidized bed jet mills.
Built-in self-diverting micro-powder classifier, ensuring concentrated particle size distribution and eliminating oversized particles in the final product.
Compact equipment structure, requiring a small footprint.
No material residue or dead corners in the grinding chamber, easy to dismantle, clean, sterilize, and change product varieties, meeting GMP requirements.
Low-temperature grinding without media, especially suitable for low-melting-point, heat-sensitive, sugar-containing, and volatile materials.
For flammable and explosive materials, inert gas can be used as the medium for fully enclosed grinding, with low loss due to the recycling of the inert gas.
Wide range of grinding particle sizes, adjustable final particle diameter within 0.5-45um; various models available, with a production capacity ranging from 5-3000kg/h.
Negative pressure production, free of dust pollution, and excellent working environment.

High degree of automation, strong stability, and easy operation.

Technical Parameters

Equipment Model	Air Consumption	Feed Particle Size	Adjustable Particle Size of Finished Product	Production Capacity	Installed Power
SCWN-Q100	3m³/min	3mm	1-45um	1-15kg/h	24kw
SCWN-Q200	6m³/min	3mm	1-45um	20-80kg/h	63kw
SCWN-Q300	10m³/min	3mm	1-45um	30-200kg/h	98kw
SCWN-Q400	20m³/min	3mm	1-45um	50-1000kg/h	160kw
SCWN-Q600	40m³/min	3mm	2-45um	100-3000kg/h	320kw
Note: The table lists the parameters of a single-stage pulverizer. However, it can be designed with multi-stage pulverizing and classification based on specific requirements to meet different technical specifications.
