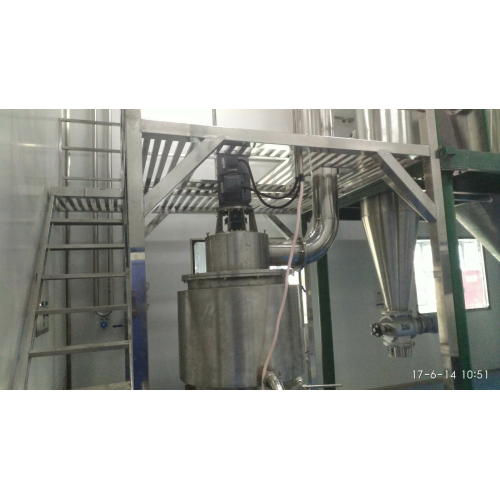

Chinese Medicine Ultrafine Pulverizer

Get Latest Price

Min. Order:

1 Set/Sets

Contact Now

Product Description

Product Attributes
Packaging & Delivery

< >

Overview

Product Attributes

Applicable Industry: Manufacturing Plant

Packaging & Delivery

Selling Units:: Set/Sets

Equipment Features:

Unique multi-force field pulverization, which boasts high pulverization efficiency and intensity for soft and fibrous materials, effectively breaking the cell walls of medicinal herbs like Ganoderma lucidum.

A reasonable cooling flow field prevents the deterioration of traditional Chinese medicinal materials due to localized temperature rise. With a low pulverization temperature, it ensures the natural attributes and quality of pulverized medicine and healthcare products.

The product is pollution-free, with a smooth inner shell surface that is easy to clean. It boasts a small footprint, low noise, no vibration, and a wide range of applications. The products processed by this series of equipment all meet the GMP standards for pharmaceuticals.

Working Principle:

The material enters the self-dividing grading zone through the feeding system for the initial grading. Most of the coarse particles are separated, while the fine powder mixed with a small amount of coarse particles is brought into the turbine grading zone by the ascending airflow for secondary grading. The fine powder passes through the grading wheel and is collected in the collector, while the coarse particles are discharged from the grading machine's discharge valve.

Technical Parameters:

Specification Model	Feed Particle Size	Discharge Particle Size	Production Capacity	Installed Power	Air Consumption
SCWN-SPYP36	＜3mm	2-100um	80-360kg/h	35-41kw	6m³/min
SCWN-SPYP120	＜3mm	2-100um	350-1200kg/h	85-154kw	20m³/min
SCWN-SPYP240	＜3mm	2-100um	650-2500kg/h	185-311kw	40m³/min
