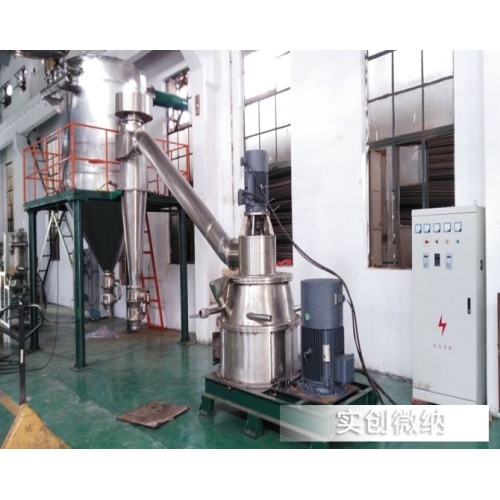

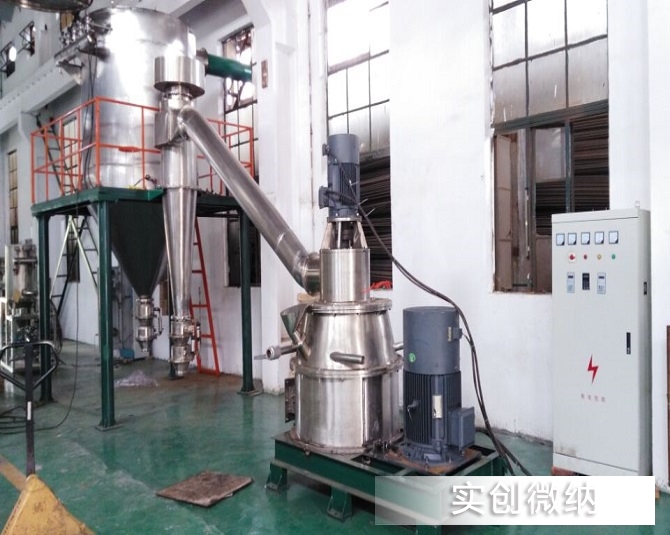

crushing and grading equipment for flake graphite

Get Latest Price

Min. Order:

1 Set/Sets

Contact Now

Product Description

Product Attributes
Packaging & Delivery

< >

Overview

Product Attributes

Place Of Origin: China

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Applicable Industry: Manufacturing Plant

Packaging & Delivery

Selling Units:: Set/Sets

Specialized crushing and grading equipment for graphite anode materials (graphite, artificial graphite, spherical graphite, and flake graphite) mainly consists of a series of jet milling, pneumatic classification, and mechanical impact mills. Tailor-made for the unique properties of spherical graphite and artificial graphite, our equipment is designed for dedicated crushing and grading. The product features include: fully negative pressure design, high precision in crushing and grading, particle shaping, low energy consumption, and minimal wear. It can be widely applied to the batch production of crushing and grading of graphite (natural graphite, artificial graphite, spherical graphite, and flake graphite).

Performance Characteristics:

The divided Impact Mill has shaping capabilities, resulting in excellent particle morphology and spherical (potato-shaped) particles.
Narrow particle size distribution and high tapped density of the finished product.
Mechanical ultrafine grinding mill with low over-grinding and a finished product yield of up to 75%-95%.
Wear-resistant lining inside the equipment ensures high purity of the finished product and minimal wear on the equipment.
Pneumatic classifier with variable frequency adjustment, allowing for adjustments between 5um-100um.
Stable operation with no differences or changes after prolonged continuous operation.
Fully enclosed negative pressure operation, automated control, low noise, and no dust pollution.

Main Technical Parameters:

Equipment Model	Feed Particle Size (mm)	Finished Particle Size (um)	Production Capacity (kg/h)	Installed Power (kw)	Remarks
SCWN-C100-2	≤1	D10=3-10 D50=5-20 D90=10-40 Dmax≤70 Yield rate：70-95%	1-10	≤14	None
SCWN-C200-2	≤2		10-50	≤36	None
SCWN-C400-2	≤2		50-300	≤90	None
SCWN-C600-2	≤2		100-500	≤120	None

Product Categories : Special Battery Material Grinding Mill
