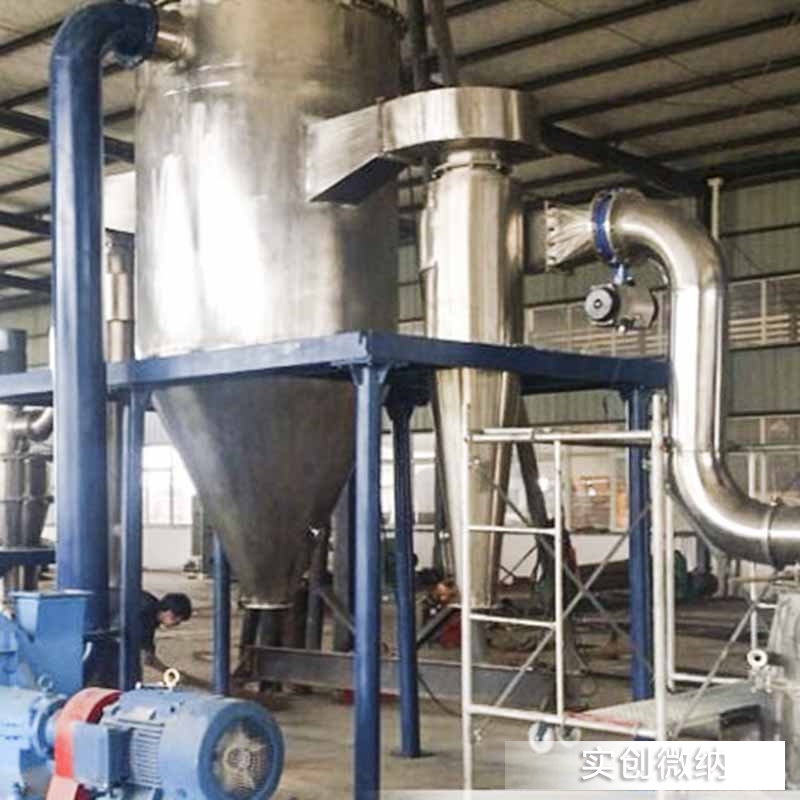

Inert Gas Protected Impact Mill

Get Latest Price

Min. Order:

1 Set/Sets

Contact Now

Product Description

Product Attributes
Packaging & Delivery

< >

Overview

Product Attributes

Applicable Industry: Manufacturing Plant

Packaging & Delivery

Selling Units:: Set/Sets

Detailed Description:

Working Principle:

After the compressed air undergoes freezing, filtering, and drying, it is propelled through nozzles to form supersonic air jets that shoot into the grinding chamber. This fluidizes the material, and the accelerated material converges at the intersection points of several nozzle jets, generating intense collisions, frictions, and shears to achieve ultrafine grinding of particles. The ground material is then transported by the ascending airflow to the impeller classification area. Under the centrifugal force of the Classifier Wheel and the suction force of the fan, the separation of coarse and fine powders is achieved. The coarse powder returns to the grinding chamber for further grinding due to its own gravity, while the qualified fine powder enters the cyclone collector with the airflow. The ultrafine dust is collected by the bag filter, and the purified air is exhausted by the induced fan.

Features:

Low Energy Consumption: Compared with traditional mechanical grinders, it can save up to 30% in energy consumption.
Integrated Self-Diverting Micropowder Classifier: Provides concentrated particle size distribution and ensures no oversized particles in the final product.
Compact Structure: Occupies a small area, saving on space.
No Material Residue: The grinding chamber has no dead corners, making it easy to dismantle, clean, sterilize, and switch between product varieties, complying with GMP requirements.
Low-Temperature and Medium-Free Grinding: Especially suitable for grinding materials with low ignition points, heat sensitivity, sugar content, and volatility.
Closed Grinding with Inert Gas: For flammable and explosive materials, inert gas can be used as the medium to achieve fully enclosed grinding. The inert gas is recycled with minimal loss.
Wide Range of Grinding Particle Sizes: The final particle size can be adjusted within the range of 0.5 to 45um; multiple models are available with production capacities ranging from 5 to 3000kg/h.
Negative Pressure Production: Ensures no dust pollution and a superior working environment.
High Automation and Stability: Easy to operate with robust stability.

Product Categories : Inert Gas Protection Jet Mill
